| Nazwa marki: | Womeng |
| Numer modelu: | WM-JAB03 |
| MOQ: | 1 |
| Ceny: | $400,000.00-$600,000.00 |
| Szczegóły opakowania: | Zdatne do żeglugi drewniane pudełko |
| Warunki płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Condition | Brand New |
| Finished Product Size | S,M,L,XL(According to customers reqirement) |
| Production Line Size | 25x6x3M(For reference only) |
| Machine Weight | About 70 tons |
| Production Speed | 500-800Pcs/Min |
| Control System | PLC control system(Mitsubishi), HMI Operating on the LED touch screen, Configure HDTV monitor |
| Drive system | Servo Drive (Easy to change size), timing belt and flat belt are import products, and all the key parts are import bearings. |
| Production Efficiency | ≥97% |
| Machine Capacity | 400KW (Excluding glue machine and air compressor) |
| Power Supply | 3 Phase, 380V, 50Hz |
| Safety System | It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer. |
| Machine Type | High Standar Full Servo |
| Product structure | Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
| Packaging System | According to customer requirements with palletizer machine (double push double exit) adjustable |
| Warranty | 1 year |
Technical features
* Compact design, easy operation & maintenance
* Modular design, for future upgrading
* Low consumption, high efficiency
* Servo or frequency inverter transmission
* Touch screen for man-machine conversation
* Auto record and calculation of process data
* Main raw material auto splicing at zero speed
* Inverter or servo unwinding with tension control
* Web guiding controller
* Sensor quality control systems
* Material broken and lost inspection, auto machine stops and defective products auto rejection
* Easy size changing and manufacture

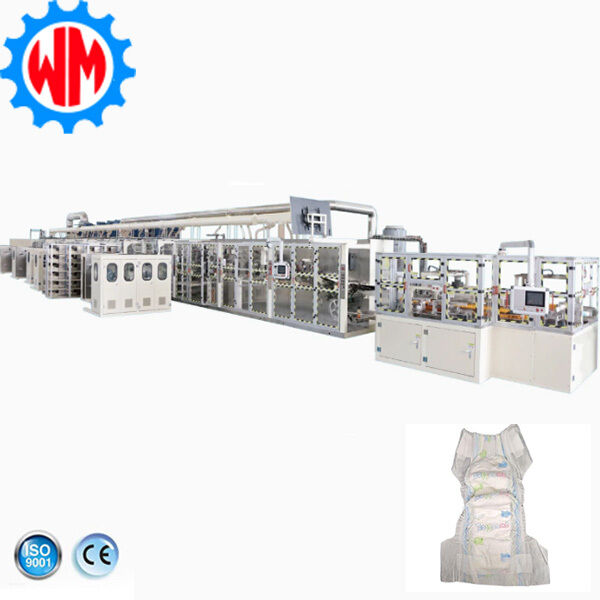

Machine Panoramic Image
Lightweight installation and relocation are convenient, meeting the flexible factory construction needs
Modular disassembly design, controllable component weight, and installation can be completed without large hoisting equipment. Reserve standardized interfaces. If the factory needs to be relocated in the future, it can be quickly disassembled and reassembled, reducing disassembly and assembly costs as well as production downtime.
The basic construction requirements are simple, and no special concrete reinforcement is needed, reducing the infrastructure investment for building factories in emerging markets.
Value to international buyers: It is especially suitable for start-ups or customers who need to flexibly adjust their production layout, reducing the threshold for initial factory construction and the cost of later capacity adjustment.
Multi-specification packaging is compatible to meet the sales demands of global channels
It can be connected to various packaging equipment such as fully automatic single-piece, multi-piece and continuous packaging, and supports customizing packaging specifications for different regions (such as large family packaging in Europe and America, portable small packaging in Southeast Asia).
At the end of the production line, reserved inkjet coding and labeling stations are provided, allowing for the simultaneous printing of production dates, batches, and traceability codes without the need for additional processes.
Value for international buyers: One-click adaptation to the sales packaging requirements of different markets, enhancing supply chain efficiency, and meeting the supply standards of multiple channels such as supermarkets, e-commerce, and convenience stores.
Localized technical support and training to address the pain points of cross-border services
Provide multilingual technical manuals (including video tutorials on installation, operation and maintenance), and support remote training for workers of overseas customers. We have cooperative service outlets in core markets such as Africa, Southeast Asia and South America, and can provide localized on-site commissioning and maintenance services.
Regularly organize online technical seminars to share valuable insights on raw material compatibility, process optimization, market trends, etc., to help buyers enhance production efficiency and product competitiveness.
Value to international buyers: Completely solve the problems of slow after-sales response and high communication costs for cross-border equipment, ensuring the continuous and stable operation of the production line.
|
