| Nazwa marki: | Womeng |
| Numer modelu: | WM-STP02 |
| MOQ: | 1 |
| Ceny: | $500,000.00-$800,000.00 |
| Szczegóły opakowania: | Drewniane pudełko z uprawy według zdania |
| Warunki płatności: | L/C, D/A, D/P, T/T, Western Union, Moneygram |
Product Info
|
Product size
|
35m*6m*3m(for reference only)
|
|
Product structure
|
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
|
Control system
|
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
|
|
Drive system
|
Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
|
|
Tension system
|

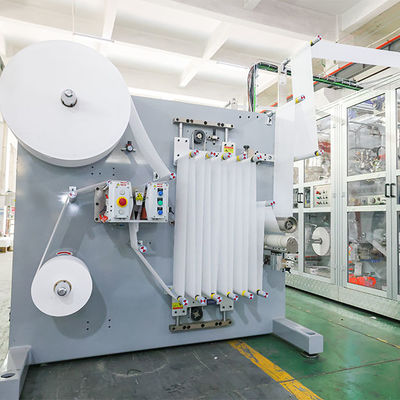

Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor. |
|
Safety system
|
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
|
| Packaging system | according to customer requirements with palletizer machine (double push double exit ) adjustable |
|
Materials corrective system
|
Materials corrective system: Adopt international famous brand deviation correction system |
|
Power
|
380V, 50HZ three phase five wire
|
|
Machine Capacity
|
230KW (Excluding glue machine and air compressor)
|
|
Bleed pressure
|
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
|
| Machine weight | 100 Tons approximately |
Whatsapp: +008615805080212
https://www.diapersmachines.com
Flexible production adaptation, responding to global market differences
Multi-specification rapid switching:
With the modular control of the full servo system, production switching between different sizes such as S/M/L/XL can be achieved by replacing a small number of molds (for example, from size M suitable for 6-10kg infants to size L suitable for 10-14kg infants), and the switching process only takes 30-40 minutes. It simultaneously supports flexible production of "daily style", "night thickened style" and "swimming special style", which can quickly adapt to the preferences of the European and American markets for ultra-thin and breathable styles and the demands of the Southeast Asian market for high cost-performance basic styles, helping buyers adjust their product structure.
Flexible and adjustable production capacity:
The production speed can be freely adjusted within the range of 300 to 800 pieces per minute. In high-speed mode, the average daily production capacity can reach over 300,000 pieces, meeting the delivery requirements of large-scale orders. The low-speed mode supports small-batch trial production starting from 5,000 pieces, facilitating buyers to test product formulas and patterns for new markets such as Africa and Latin America. After verifying acceptance, they can expand production capacity and reduce the risk of inventory overstock.
