| Nazwa marki: | Womeng |
| Numer modelu: | WM-DLLK06 |
| MOQ: | 1 |
| Ceny: | $600,000.00-$800,000.00 |
| Szczegóły opakowania: | Drewniane pudełka z zdobytym |
| Warunki płatności: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
Product Info
|
Product size
|
35m*6m*3m(for reference only)
|
|
Product structure
|
Product structure: upper & lower tissue, cotton core (mix with SAP), cover sheet hydrophilic non-woven , ADL (Acquisitiondistribution layer) non-woven,leak guard hydrophobic non-woven back sheet,Waist band non-woven,color pattern sticker,elastic waist band, discarding sticker. |
|
Control system
|
PLC control system,HMI Operating on the LED touch screen,Configure HDTV monitor
|
|
Drive system
|
Semi Servo Drive, timing belt and flat belt are import products, and all the key parts, are import bearings.
|
|
Tension system
|
Top tissue paper,bottom tissue paper,hydrophobic nonwoven(leg cuff),top nonwoven,ADL,back sheet,elastic nonwoven are adopt A&B
shaft active unwinding by inverter motor. |
|
Safety system
|
It has safety device on the operating side, matched with urgent stop switch.High audio fan uses sound insulation or silencer.
|
| Packaging system | according to customer requirements with palletizer machine (double push double exit ) adjustable |
|
Materials corrective system
|
Materials corrective system: Adopt international famous brand deviation correction system |
|
Power
|
380V, 50HZ three phase five wire
|
|
Machine Capacity
|
230KW (Excluding glue machine and air compressor)
|
|
Bleed pressure
|
0.6-0.8Mpa (Air compressor needs to be prepared by customers)
|
| Machine weight | 100 Tons approximately |
The production line includes:
Pulp crusher system
SAP feeding system
Drum forming system
Lower tissue paper feeding system
SAP paper feeding system
Core wrapping system
Perfume feeding system
Mat cutting system
Hydrophobic non woven feeding system
Hydrophilic non woven feeding system
Flow cannel embossing system
Side sealing system
PE film feeding system
Back release paper feedig & cutting system
Outer cutting system
Edge scrap collecting system
180 degree transfer system
Wing release paper feeding & cutting system
90 degree transfer system
Packing film feeding system
Product seal cutting system
Easy tape feeding & cutting unit
Out put rejection system

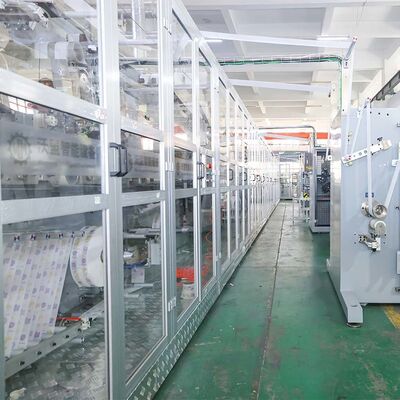

Machine Panoramic Image
Whatsapp: +008615805080212
https://www.diapersmachines.com
The product quality is excellent and meets the global consumer demands
Dual advantages of leak-proof and form-fitting, enhancing the user experience:
The full servo system precisely controls the tension of the elastic waist and the formation of the leak-proof protective band, ensuring that the pull-up pants fit the baby's figure well, are less likely to shift during movement, and have a side leakage rate of less than 2%. Equipped with elastic band tension stabilization control technology, the waistline remains elastic for a long time without sagging. It can be comfortably worn by babies from newborns to toddlers (NB-XL full size).
Highly efficient in water absorption and retention, suitable for various scenarios:
Precisely control the mixing ratio and laying density of the wool slurry and water-absorbing resin (SAP). With a simulated urine volume of 300ml, it can quickly penetrate and retain water without reverse seepage, meeting the needs of both daytime activities and long-term use at night. Supports the production of ultra-thin (2-3mm) and thickened (4-6mm) cores, and can adapt to the climate differences in tropical and high-latitude regions without equipment modification.
Skin-friendly, environmentally friendly and compatible, expanding product dimensions:
Compatible with skin-friendly surface layers such as pure cotton and bamboo fiber, as well as degradable base films and other eco-friendly materials. During production, the fabric tension is precisely controlled to avoid fiber damage and ensure a soft and smooth skin care touch. It complies with international hygiene standards such as the EU CE and the US FDA, and can meet the preferences of 41% of the new generation of parents worldwide for eco-friendly baby and maternal products.
